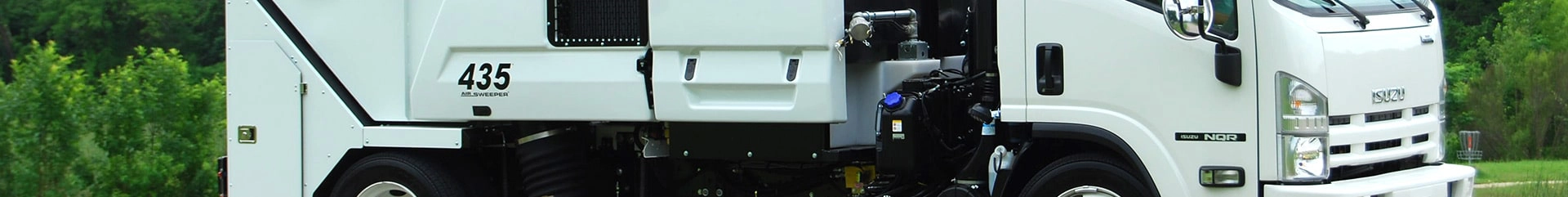

TYMCO Model 435® Street Sweeper
Model 435 gives you the most versatile mid-sized sweeper available, by giving street sweeping performance using a parking lot sweeping package.
Brochures
Specs
Sweeper Features
Pick-Up Head
The TYMCO Model 435® heavy duty pick-up head incorporates full-width air blast and suction and is designed to work effortlessly with the TYMCO Regenerative Air System to pick up a wide variety of street and construction site debris from leaves and trash to heavy dirt, sand and rocks.
The Model 435 pick-up head comes standard with long-lasting Duo-Skids® which provide increased sweeping performance and longer wear.
Hopper
The Model 435’s powerful piggyback hopper dump cylinders lift the hopper up to 72 inches for dumping into large dumpsters and most 30-yard containers commonly located near maintenance facilities and construction sites.
These heavy-duty dump cylinders allow the Model 435 to high dump even the heaviest of loads. A built-in safety strut is permanently attached to the hopper frame for easy accessibility when performing routine maintenance.
Gutter Broom
The 32” diameter Model 435 gutter broom removes debris from curbs, gutters and around obstacles along city streets such as parked cars and maintenance equipment. An optional tilt adjuster allows you to reach down into the deepest curbs or gutters.
The innovative gutter broom provides excellent performance by automatically determining the “digging” pressure needed for different debris; therefore, owners get maximum gutter broom bristle life and sweeping performance. If the gutter broom encounters an immovable object, it will automatically retract to avoid potential damage and return to the original position once the immovable object has been passed, all without intervention from the operator.
Dust Control
The Model 435 is the only mid-sized street sweeper on the market with a high-efficiency centrifugal dust separator for maximum fine dust particulate separation which provides excellent dust control while using less water.
TYMCO’s engineers take several aspects into account when designing for better dust control such as water nozzle design and placement, not just adding more water like other street sweepers. The Model 435 has a water capacity of 150 gallons which provides hours of sweeping while maintaining excellent dust control.
TYMCO’s inherent design for conserving water while providing excellent dust control allows the Model 435 to pass the strict South Coast Air Quality Management District (AQMD) Rule 1186 standard for excellent dust and PM10 control.
Power Unit
The Model 435 is powered by a turbocharged 56 horsepower Kubota auxiliary engine. This engine powers all hydraulic functions through a gear driven pump and directly belt drives the blower. The lightweight aluminum alloy blower that drives the TYMCO Regenerative Air System only requires a modest amount of horsepower; therefore, TYMCO’s engineers designed the Model 435 around a smaller, more fuel efficient auxiliary engine.
Blower Wheel
The Model 435 is the only mid-sized street sweeper that utilizes a super-efficient aluminum alloy blower that is self-cleaning and reduces fuel consumption because of its lightweight design requiring less horsepower. The blower is designed to work with the TYMCO Regenerative Air System to both push and pull air which delivers even greater sweeping performance.
The Model 435 blower has a natural rubber coating that provides maximum wear against abrasive debris.
Truck Types
Cabover
Isuzu NQR or NPR-XD
Conventional
Freightliner M2-106
Sweeper Options
Gutter Broom –Right in lieu of standard left or Twin
Gutter Broom Tilt Adjuster – Left, Right or Twin
Variable Speed Gutter Brooms
Sound Reduction Engineering (SRE) Package
Hopper Deluge System
Hopper Load Indicators
Camera/Monitor System
COMDEX®
Auxiliary Hand Hose
Stainless Steel Hopper
Hopper Drain System
Dual Steering
Pick-Up Head Curtain Lifter
