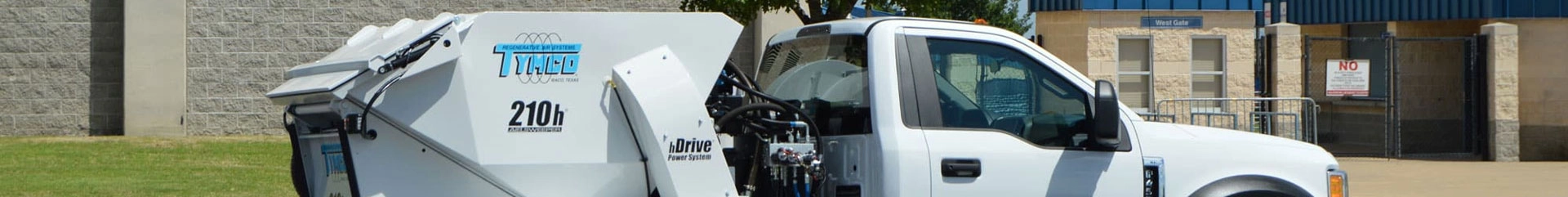

TYMCO Model 210h® Parking Lot Sweeper
Brochure
Specs
Sweeper Features
Control Console
The Model 210h® control console utilizes lighted rocker switches for easier visibility when sweeping parking lots at night. From within the cab, the operator can control the blower, pick-up head, gutter broom, dust control water system, all warning lights and the pressure bleeder. The control console also includes an hour meter.
Pick-Up Head
The TYMCO Model 210h® heavy duty pick-up head incorporates full-width air blast and suction and is designed to work effortlessly with the TYMCO Regenerative Air System to pick up a wide variety of parking lot debris from leaves and trash to dirt, sand, and gravel. The Model 210h pick-up head comes standard with long-lasting Duo-Skids® which provide increased sweeping performance and longer wear.
Hopper
The Model 210h’s powerful piggyback hopper dump cylinders lift the hopper up to 60 inches for dumping into dumpsters or containers commonly located near parking lots. These heavy duty dump cylinders allow the Model 210h to high dump even the heaviest of loads. A built-in safety strut is permanently attached to the hopper frame for easy accessibility when performing routine maintenance.
Gutter Broom
The 32” diameter Model 210h gutter broom removes debris from around parking lot islands, medians and parking bumpers. The innovative gutter broom provides excellent performance by automatically determining the “digging” pressure needed for different debris; therefore, owners get maximum gutter broom bristle life and sweeping performance.
If the gutter broom encounters an immovable object, it will automatically retract to avoid potential damage and return to the original position once the immovable object has been passed, all without intervention from the operator. The 210h mounted on a Ford F-450 has gutter broom options with poly-wafer, poly-digger and steel digger bristles.
Dust Control System
The Model 210h is the only single engine parking lot sweeper on the market with a high-efficiency centrifugal dust separator for maximum fine dust particulate separation which provides excellent dust control while using less water.
TYMCO’s Engineers take several aspects into account when designing for better dust control such as water nozzle design and placement, not just adding more water like other parking lot sweepers. The Model 210h has a water capacity option of up to 30 gallons which provides hours of sweeping while maintaining excellent dust control.
hDrive® Power System
The Model HSP is powered by a 99 horsepower John Deere auxiliary engine. This engine powers all hydraulic functions through a gear driven pump and directly belt drives the blower.
The lightweight aluminum alloy blower that drives the TYMCO Regenerative Air System only requires a modest amount of horsepower; therefore TYMCO’s engineers designed the Model HSP around a smaller, more fuel efficient auxiliary engine.
Blower Wheel
The Model 210h is the only single engine parking lot sweeper that utilizes a super-efficient aluminum alloy blower that is self-cleaning and reduces fuel consumption because of its lightweight design requiring less horsepower.
The blower is designed to work with the TYMCO Regenerative Air System to both push and pull air which delivers even greater sweeping performance. The Model 210h blower is available with an optional natural rubber coating providing maximum wear against abrasive debris.
Truck Types
Ford F-450 or F-350
Sweeper Options
Gutter Broom – Right in lieu of standard left
Auxiliary Hand Hose
Camera/Monitor System
Backpack Blower Storage Box
Stainless Steel Hopper
