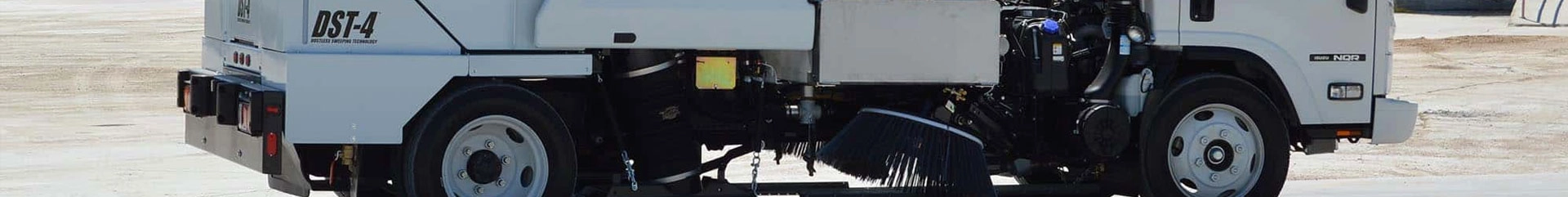

TYMCO Model DST-4® Street Sweeper
Brochures
Specs
Sweeper Features
Pick-Up Head
The TYMCO Model DST-4 Pick-up head incorporates a full-width 78 inches of blast and suction. The Model DST-4 heavy duty Pick-Up Head is designed to work effortlessly with the TYMCO Regenerative Air System to pick up a wide variety of debris from leaves and trash to heavy dirt, sand, rocks, and most importantly, ultra-fine particles.
Hopper
High dump function that lifts the hopper up to 72 inches for dumping into various size containers and most 30 cubic yard roll off containers. The TYMCO Model DST-4 is equipped with powerful piggyback hopper lift cylinders. These heavy duty dump cylinders allow the Model DST-4 to high dump even the heaviest of loads. A safety strut is permanently attached to the hopper frame for easy accessibility. When the hopper is in the up position, simply insert the steel pin into the hole on the built-in safety strut.
DST System
The small amount of air that is diverted from the system to achieve the dustless effect is filtered through TYMCO’s patented DST system. The DST System will filter the diverted air through a pre-cleaner and cartridge filters. These filters have been determined through independent laboratory testing using the American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE) 52.2 testing standards to have a Minimum Efficiency Reporting Value (MERV) 16 Rating, meaning they are able to capture a minimum of 95% of 0.30 micron and larger size particles. That is 1/200 of the diameter of a human hair! The best part is that both the pre-cleaner and cartridge filters are washable, ensuring long service life.
​
The DST-4 can be used in wet or dry conditions because the combination of our centrifugal dust separator and pre-cleaner will spin out moisture before it sees the cartridge filters.
​
While sweeping, the cartridge filters are cleaned automatically by an intermittent air pulse which keeps the filters operational in most dusty applications.
Gutter Brooms
Gets debris out of the curb/gutter with 36″ diameter gutter brooms with in-cab controls. The tilt gutter broom allows you to reach down into the deepest gutters. TYMCO’s 36″ gutter broom design has a pressure sensing sequence valve to automatically determine the digging pressure needed for different debris; therefore, customers get maximum broom bristle life and cleaning performance.
Power Unit
The Model DST-4 sweeper is powered by a 56 horsepower Kubota auxiliary engine. This engine powers all hydraulic functions through a gear driven pump and directly belt drives the blower wheel.
Blower Wheel
Variable Speed Gutter Brooms
From inside the cab, the operator can control the speed of the gutter brooms. This allows the operator to match the speed of the truck while sweeping to lessen the amount of dust being kicked up.
TYMCO uses a natural rubber coated aluminum blower wheel which we have found to be the most abrasion resistant as well as reduces fuel consumption because of its lightweight design.
Truck Types
Dust Control
TYMCO incorporates a high efficiency multi-pass cylindrical centrifugal dust separator for maximum particulate separation and sweeping performance. Designed for easy clean out and maintenance.
​
On board 77 gallons of water for dust control around the gutter brooms and inside the hopper. For below freezing conditions, the sweeper will continue sweeping dustless without using water.
Isuzu NQR or NPR-XD
Sweeper Options
Camera/Monitor System
Stainless Steel Hopper and Dust Box
Dual Steering
Pick-Up Head Curtain Lifter
